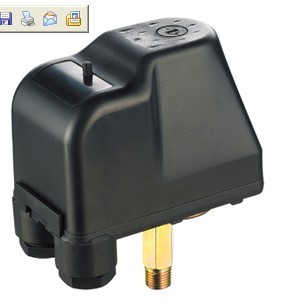

WEM-04

TECHNICAL DATA
1.Pressure Range:1-2.0bar
2.Pressure Setting:0.1-0.5bar、0.15-0.9bar
3.Rated Current:16(10)A
4.Rated Voltage:120V-240V
5.Frequency:50/60Hz
6.Max Ambient Temperature:55℃
7.Protection Degree:IP54

DESCRIPTIONS
1.Pressure switch used in water systems and pneumatic systems.
2.The device interrupts the electric connection between the line and the load when the pressuer decrease below the setting calue(stopping pressuer).
3.press the button to preset the pressure of water pressure and air pressure systems.The preset value must be higher than products starting
pressure setting valye.
4.Hydraulics connection can choose:1/4"Male&Female.
5.Anti-wearing cable clamps.
